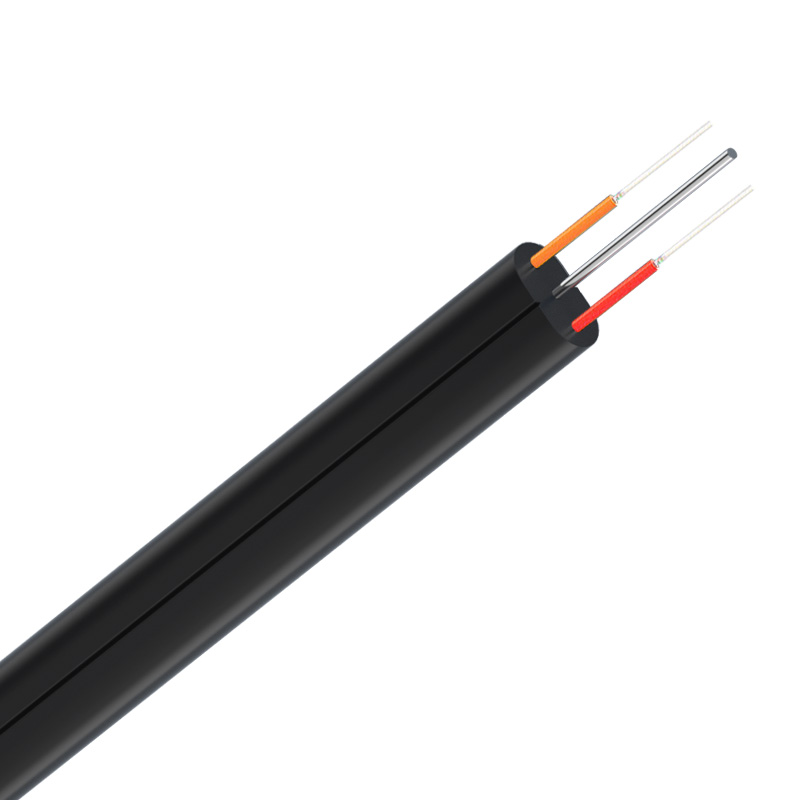

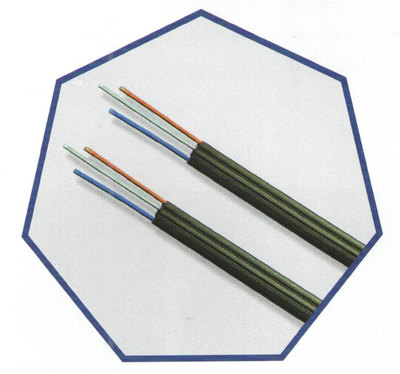

扁平表貼型溫度振動傳感光纜
Flat&tabbed temperature vibration sensing cable
產品描述Description
扁平型溫度振動傳感光纜是一種專門用于表貼在被監測物體表面的一種專業的傳感光纜。光纜由緊包型振動傳感光纖、緊包型測溫光纖以及加強件組成。緊包光纖與外護套緊密接觸，可以實時地感應到外部的振動變化，溫度變化；產品柔軟，輕便，特別適用于表貼，膠粘方式布線，在大型建筑建康情況監測，管廊，管道，鐵路路基變形等監測上有廣泛的應用。
The flat temperature vibration sensor cable is a kind of professlional sensing optical cable which is specially used to stick on the surface of the monitored object. The cable is composed of vibration sensing fiber, temperature measuring fiber and reinforcement. The compact fiber is in close contact with the outer sheath, which can sense the external vibration change and temperature change in real time. The product is soft, light.Andit is especially suitable for table paste, adhesive wiring, in large building construction condition monitoring, pipecorridor, pipeline, railway deformation monitoring.
產品特點Features
◆該光纜把振動傳感光纖和DTS探測光纖結合一起，一次施工.
The cable integrates vibration sensing fiber and DTS sensor fiber together.
◆該光纜柔軟，輕便，適用于表貼，膠粘方式布線
The cable soft, lightweight, suitable for table,adhesive wiring way
推薦用途Application
◆管道、建筑物表面測溫或振動
Temperature measurement or vibration on pipes, building surfaces

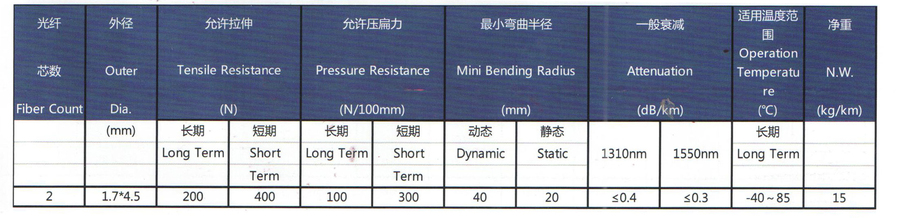

主要參數Main Parameters
